T-slot Sliders

Simple sliding mechanisms that sit inside the aluminium profile groove.  T-slot Sliders 5, 6 and 8 are able to rotate as well as slide along the groove, catering to lightweight applications where you need to allow for alignment errors.

The T-slot Slider 8 80×40 is a strong option with low wear and low friction, creating a gentle transfer from one place to another.  It can operate in difficult conditions with dust and humidity.

Simple Slide Mechanism

0.0.437.98 T-Slot Slider 5 T-slot Slider 5
0.0.437.98

for Profile 5
More info & CAD @ au.item24.com
 0.0.459.07 T-Slot Slider 6 T-slot Slider 6
0.0.459.07

for Profile 6
More info & CAD @ au.item24.com
 0.0.601.23 T-Slot Slider 8 T-slot Slider 8
0.0.601.23

for Profile 8
More info & CAD @ au.item24.com
 0.0.607.39 T-Slot Slider 8 80x40 T-slot Slider 8 80×40
0.0.607.39

for Profile 8
More info & CAD @ au.item24.com
 0.0.626.68 T-Slot Slider 8 80x40 with Slide Clamp T-slot Slider 8 80×40 with Slide Clamp
0.0.626.68

for Profile 8
More info & CAD @ au.item24.com


T-slot Rollers

Effective rollers for lightweight applications such as keyboard drawers.

T-slot Rollers

0.0.457.51 T-Slot Roller 8 F T-slot Roller 8 F
0.0.457.51

for Profile 8
More info & CAD @ au.item24.com
0.0.457.60 T-Slot Roller 8 L T-slot Roller 8 L
0.0.457.60

for Profile 8
More info & CAD @ au.item24.com

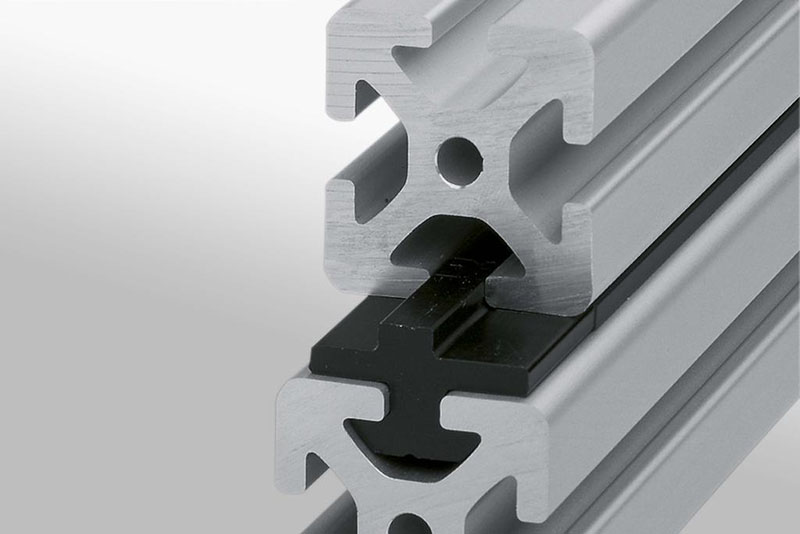

Slide Guide Strip

Mounted directly in the profile groove to create simple slide mechanisms. Alternatively, it can be screw-connected to aluminium profiles or to moving components.

The design is slightly offset to prevent the moving components from colliding with the fixed frame.

Slide Guide Strip

0.0.464.24 Slide Guide Strip 5_5e, black Slide Guide Strip 5/5e, black
0.0.464.24
Max. L = 2000mm

for Profile 5
More info & CAD @ au.item24.com
0.0.459.27 Slide Guide Strip 6_6e, black Slide Guide Strip 6/6e, black
0.0.459.27
Max. L = 2000mm

for Profile 6
More info & CAD @ au.item24.com
0.0.458.58 Slide Guide Strip 8_8e, black Slide Guide Strip 8/8e, black
0.0.458.58
Max. L = 2000mm

for Profile 8
More info & CAD @ au.item24.com
