Work Benches can require a range of different apparatus.  A custom designed workbench will ensure you get just what you need.

Shelves

Once the Shelf profile has been cut to length, simply slot the shelf into a Profile 8 groove, secure it in place and then use it to store loads up to 50 kg!

It can be combined with Profile 5 20×10 and the corresponding caps.

Shelf Profile

0.0.618.53 Shelf Profile 8 200, natural Shelf Profile 8 200, natural
0.0.618.53
More info & CAD @ au.item24.com
0.0.621.00 Shelf Profile 8 320, natural Shelf Profile 8 320, natural
0.0.621.00
More info & CAD @ au.item24.com
0.0.623.27 Shelf Cap Set 8 200 Shelf Cap Set 8 200
0.0.623.27
More info & CAD @ au.item24.com
0.0.647.68 Shelf Cap Set 8 200 with Raised Edge Shelf Cap Set 8 200 with Raised Edge
0.0.647.68
More info & CAD @ au.item24.com
0.0.623.30 Shelf Cap Set 8 320 Shelf Cap Set 8 320
0.0.623.30
More info & CAD @ au.item24.com
0.0.647.65 Shelf Cap Set 8 320 with Raised Edge Shelf Cap Set 8 320 with Raised Edge
0.0.647.65
More info & CAD @ au.item24.com


Monitor Attachments

The Monitor Adapter enables flatscreens to be installed with optional anti-torsion features that mechanically lock the set position.  Fasten the adapter directly onto profile 8.

The pivoting Monitor Mounting Joint 8 VESA 75-100 secures flatscreen monitors directly to profile 8.  The two friction hinges ensure users can adjust monitors weighing up to 11 kg horizontally and vertically to achieve the ideal viewing angle.

The height adjustable Monitor Arms are for monitors weighing between 2 and 10 kg.  The Monitor Arms can be moved and pivoted in all directions.  The five-joint variant also allows users to move their monitor closer or further away.

Monitor Attachments

0.0.615.48 Monitor Adapter 8 VESA 75-100 PA Monitor Adapter 8 VESA 75-100 PA
0.0.615.48
More info & CAD @ au.item24.com
0.0.653.42 Monitor Mounting Joint 8 VESA 75-100 Monitor Mounting Joint 8 VESA 75-100
0.0.653.42
More info & CAD @ au.item24.com
0.0.649.44 Monitor Arm Monitor Arm
0.0.649.44
More info & CAD @ au.item24.com
0.0.678.76 Monitor Arm, height-adjustable, 4 joints Monitor Arm, height-adjustable, 4 joints
0.0.678.76
More info & CAD @ au.item24.com
0.0.678.77 Monitor Arm, height-adjustable, 5 joints Monitor Arm, height-adjustable, 5 joints
0.0.678.77
More info & CAD @ au.item24.com


Keyboard Attachments


Keyboard Attachments

0.0.649.43 Keyboard Arm Keyboard Arm
0.0.649.43
More info & CAD @ au.item24.com
0.0.620.87 Keyboard Shelf Keyboard Shelf
0.0.620.87
More info & CAD @ au.item24.com


Groove Plate

The Groove Plate Profile is 400 mm high and can be supplied in any width. Ten Profile 8 grooves on the front and nine Profile 8 grooves on the rear offer a great deal of space for organising work benches and workshop trolleys.  Thanks to its low weight of just 5.2 kg per metre, it can be used with ease on transport trolleys.

Open end faces are safely covered over with the Caps.  The Caps can also be used to secure the Groove Plate Profile within a load-bearing frame.  As an alternative to fastening with the Cap, the Fastening Set, Groove Plate Profile 8 is used to install the Groove Plate Profile flush to the frame.

The Groove Plate Profile is not to be viewed as a construction profile. Heavy accessories such as a Pivot Arm should always be mounted on a profile frame.

Pictured with Tool Grip 8

Tool Grip

0.0.678.02 Groove Plate Profile 8 400x14, natural Groove Plate Profile 8 400×14, natural
0.0.678.02
More info & CAD @ au.item24.com
0.0.684.89 Cap, Groove Plate Profile 8 200x14, black similar to RAL 9005 Cap, Groove Plate Profile 8 200×14, black similar to RAL 9005
0.0.684.89
More info & CAD @ au.item24.com
0.0.687.16 Fastening Set, Groove Plate Profile 8 Fastening Set, Groove Plate Profile 8
0.0.687.16
More info & CAD @ au.item24.com


Runners

The simple Runner 8 slides within the profile groove.

Alternatively, the Runner 8 80×40 can be retrofitted and also has additional holes for securing cables away from the sliding movement.

Runner 8 80x40

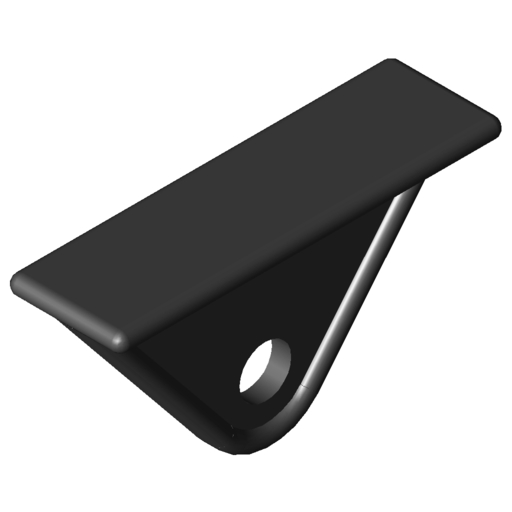

0.0.026.13 Runner 8, black Runner 8, black
0.0.026.13
More info & CAD @ au.item24.com
0.0.618.97 Runner 8 80x40 Runner 8 80×40
0.0.618.97
More info & CAD @ au.item24.com


Tool Balancers

Retractable Tool Balancers ensure tools are out of the way but standing by.  When not required, the Tool Balancer automatically removes the tool from the immediate working area.  An adjustable stop allows users to tailor the default height of the device to their needs.

Precisely adjustable retraction force takes considerable strain off staff when working with heavy tools.  An arrester mechanism is also integrated as standard.

Tool Balancers

0.0.631.84 Tool Balancer 0.4-1 kg Tool Balancer 0.4-1kg
0.0.631.84
More info & CAD @ au.item24.com
0.0.636.48 Tool Balancer 1-2 kg Tool Balancer 1-2kg
0.0.636.48
More info & CAD @ au.item24.com


Conduit

We have three popular options for conduit.  See the conduit system.
