Well Manufactured, Easy to Assemble

These conveyor lines are designed to be made to the length you require, installed quickly and modified whenever necessary.  Manual Roller Conveyors are a popular and simple solution for many warehousing tasks.  Using either gravity (on a slight angle) or manual handling, a manual roller conveyor can make it so much easier to move things from A to B.  Conveyors can often save you time, money and very importantly, an employee’s health and wellbeing.

A computer-generated drawing of your conveyor can be provided during the process to take the guess-work out of such an important purchase.

Depending on the conveyor size, it may be possible to ship the unit to you fully assembled. However, in many cases, the conveyor can be delivered as a flat pack ready to assemble, in order to save costs.

Conveyor TR30 Assembly

Two Choices of Manual Conveyor

Two different styles are readily available in Australia, the TR30 and the TR50.

TR30

The TR30 Manual Roller Conveyor uses 30mm round aluminium as its base product.  The length, width and stabilising frame can all be customised to suit the space you need.  If you’re looking to move heavy or large objects, then the TR50 may be a better choice.

Call or email us with the approximate dimensions you need and what you’re planning on putting on the conveyor.  We can then help you with the design and send you a quote.

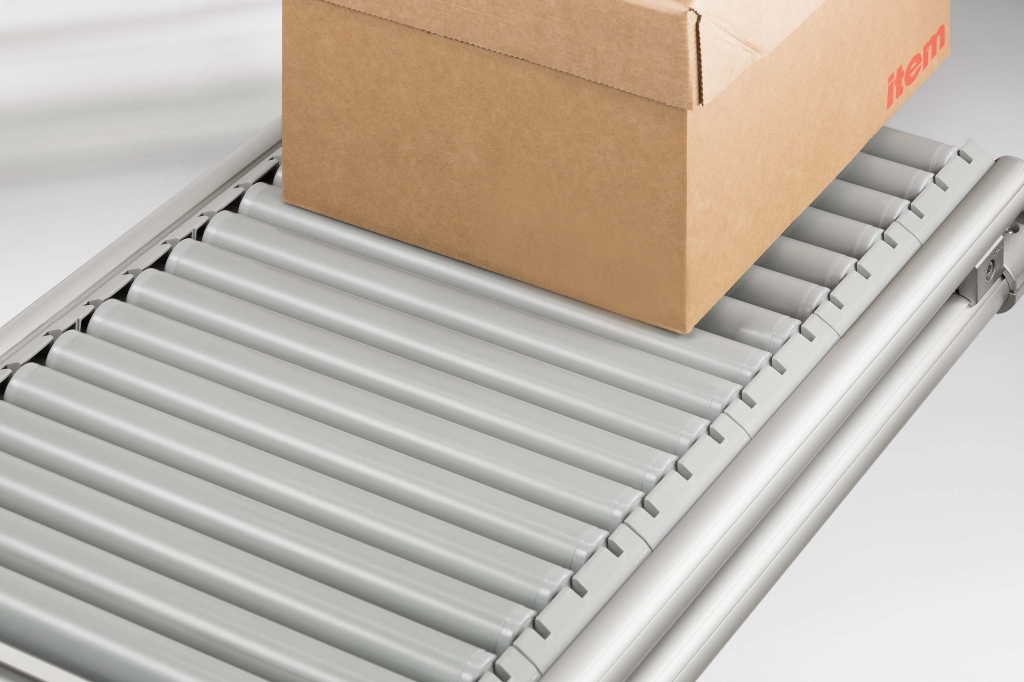

Manual Roller Conveyor TR30

Components of the TR30 Manual Roller Conveyor

Choose from either aluminium or plastic rollers.  Plastic rollers create a more gentle environment for supporting goods along their way.  Both the aluminium and plastic rollers use the Profile Tube D30, Caps and Bearing Blocks to hold it all together.

Manual Conveyor Roller TR30 Aluminium



0.0.628.28 Profile Tube D30 Profile Tube D30, natural
0.0.628.28
Max. L = 6000mm
More info & CAD @ au.item24.com
0.0.629.78 Cap, Tube D30, grey Cap, Tube D30, grey
0.0.629.78
More info & CAD @ au.item24.com
0.0.671.52 Bearing Block D30 100 D5-33, grey Bearing Block D30 100 D5-33, grey
0.0.671.52
More info & CAD @ au.item24.com
Plastic:
0.0.675.01 Tube D30x1.8 KU, grey Tube D30x1.8 KU, grey
0.0.675.01
Cut to length
More info & CAD @ au.item24.com

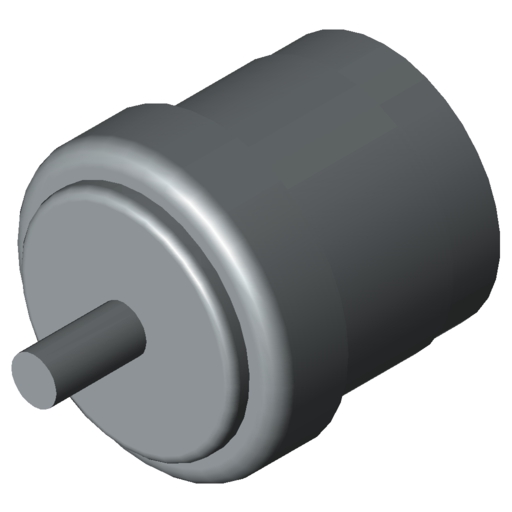

0.0.674.94 Conveyor Roller TR30, Bearing Flange D26.4 D5, grey Conveyor Roller TR30, Bearing Flange D26.4 D5, grey
0.0.674.94
More info & CAD @ au.item24.com
Aluminium:
0.0.628.56 Tube D30, natural Tube D30, natural
0.0.628.56
Cut to length
More info & CAD @ au.item24.com

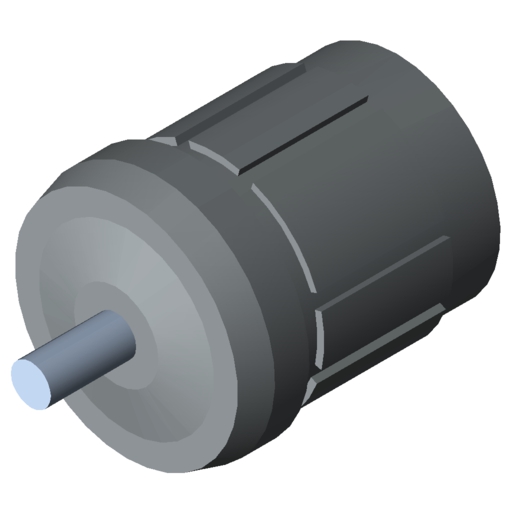

0.0.673.67 Conveyor Roller TR30, Bearing Flange D27 D5, grey Conveyor Roller TR30, Bearing Flange D27 D5, grey
0.0.673.67
More info & CAD @ au.item24.com

TR50

The TR50 Manual Roller Conveyor uses 50mm rollers and the 80×40 t-slot aluminium as its base products.  The TR50 can be easily assembled and rollers and bearings can be replaced without pulling apart the entire structure.

The length, width and stabilising frame can all be customised to suit the space you need.  If you’re looking to move heavy or large objects, then the TR50 is a great choice.

Call or email us with the approximate dimensions you need and what you’re planning on putting on the conveyor.  We can then help you with the design and send you a quote.

Manual Roller Conveyor TR50

Components of the TR50 Manual Roller Conveyor

Choose from either aluminium or plastic rollers.  Plastic rollers create a more gentle environment for supporting goods along their way.  Both the aluminium and plastic rollers use the Profile 8 80×40 aluminium, along with Caps and Groove Profile to hold it all together.  Slide Strips create a cushioning effect for your goods.

Groove Profile for Manual Roller Conveyors

0.0.026.34 Profile 8 80x40 light, natural Profile 8 80×40 light, natural
0.0.026.34
Max. L = 6000mm
More info & CAD @ au.item24.com
0.0.026.02 Cap 8 80x40, black Cap 8 80×40, black
0.0.026.02
More info & CAD @ au.item24.com
0.0.457.99 Slide Strip 8 antistatic, black Slide Strip 8 antistatic, black
0.0.457.99
Max. L = 2000mm
More info & CAD @ au.item24.com
0.0.422.04 Slide Strip Wedge 8, black Slide Strip Wedge 8, black
0.0.422.04
More info & CAD @ au.item24.com
Plastic:
0.0.427.63 Tube D50 KU, black Tube D50 KU, black
0.0.427.63
Cut to length
More info & CAD @ au.item24.com

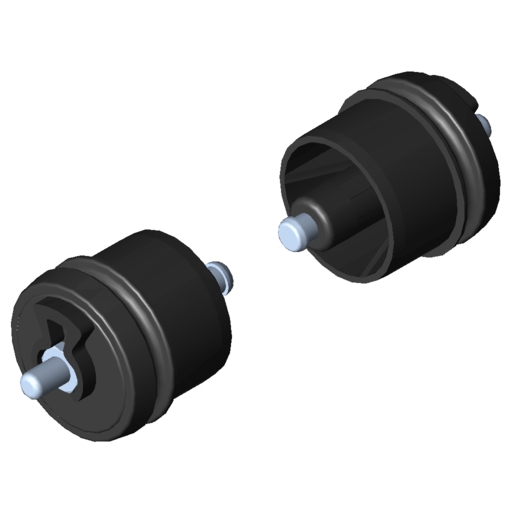

0.0.422.63 Conveyor Roller TR50, Bearing Set Conveyor Roller TR50, Bearing Set
0.0.422.63
More info & CAD @ au.item24.com
Aluminium:

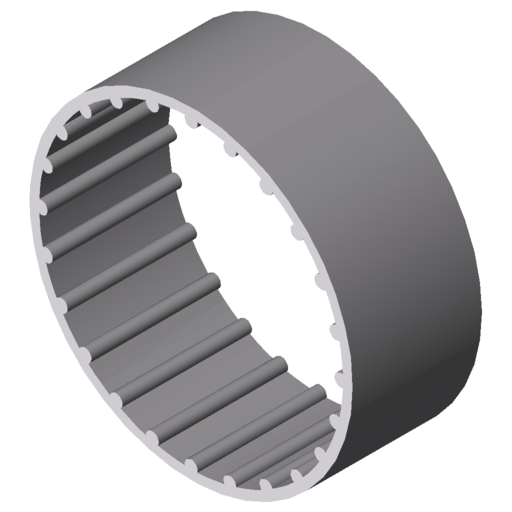

0.0.416.03 Tube D50 Al, natural Tube D50 Al, natural
0.0.416.03
Cut to length
More info & CAD @ au.item24.com
0.0.422.63 Conveyor Roller TR50, Bearing Set Conveyor Roller TR50, Bearing Set
0.0.422.63
More info & CAD @ au.item24.com
Choose your spacing:

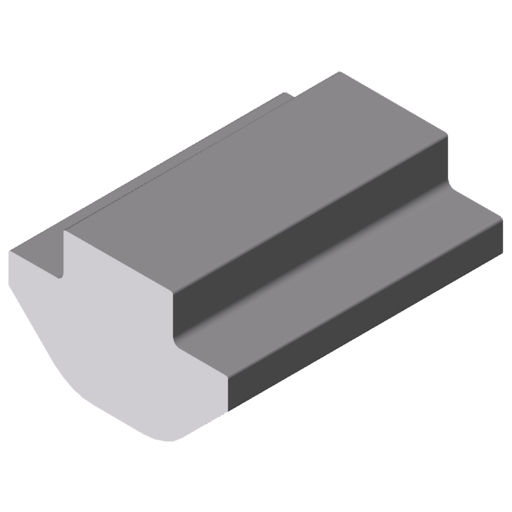

0.0.427.72 Groove Profile 8 Al M8-40 Groove Profile 8 Al M8-40
0.0.427.72
Max. L = 2000mm
Threaded bore M8 every 40mm
More info & CAD @ au.item24.com
0.0.465.33 Groove Profile 8 Al M8-60, natural Groove Profile 8 Al M8-60
0.0.465.33
Max. L = 2000mm
Threaded bore M8 every 60mm
More info & CAD @ au.item24.com
